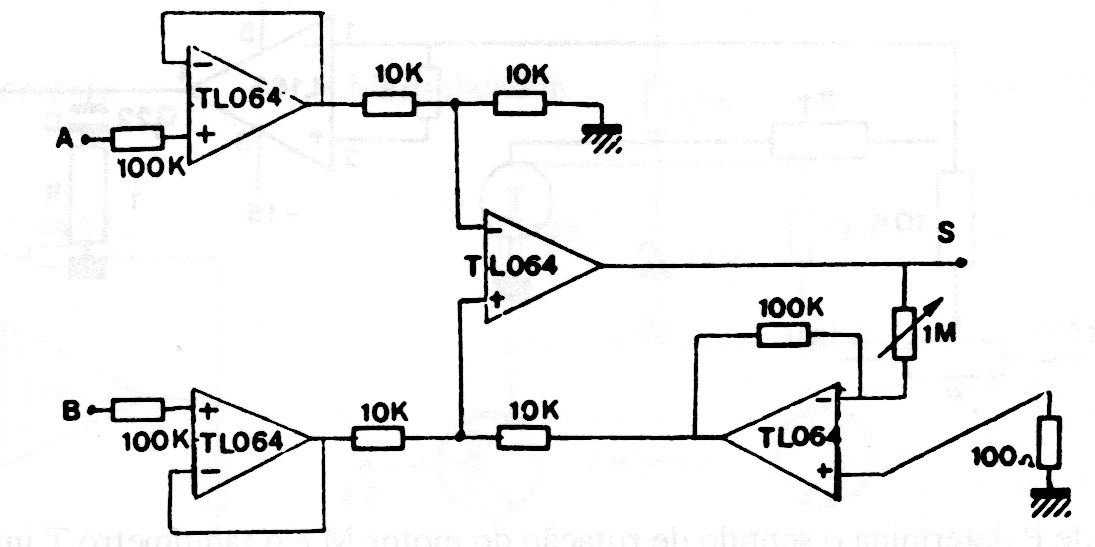

This amplifier for instrumentation with very high input impedance was found in a manual of JFET circuits. The operational ones used are current and the power supply must be symmetrical.
| Clique na imagem para ampliar |
Instrumentation amplifier (CB19491E)
