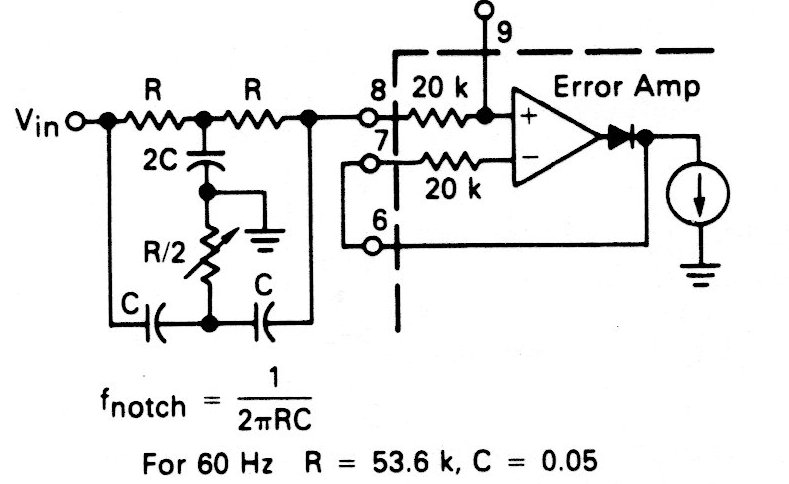

This filter configuration was found in an 80's documentation. The circuit has the frequency calculated by the formulas next to the diagram. The error amplifier can be implemented with an operational amplifier.
| Clique na imagem para ampliar |
Notch Filter (CB19803E)
- Details
- Written by: Newton C. Braga
