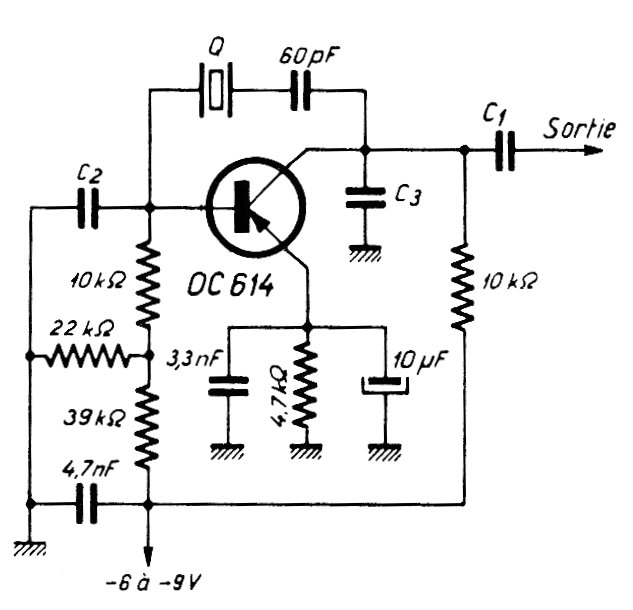

This conventional oscillator can generate signals from 8 to 30 MHz depending on the crystal used. The transistor is from that time since the circuit is from the 80s. However, it can be implemented with current RF transistors, just inverting the polarity of the power supply.
