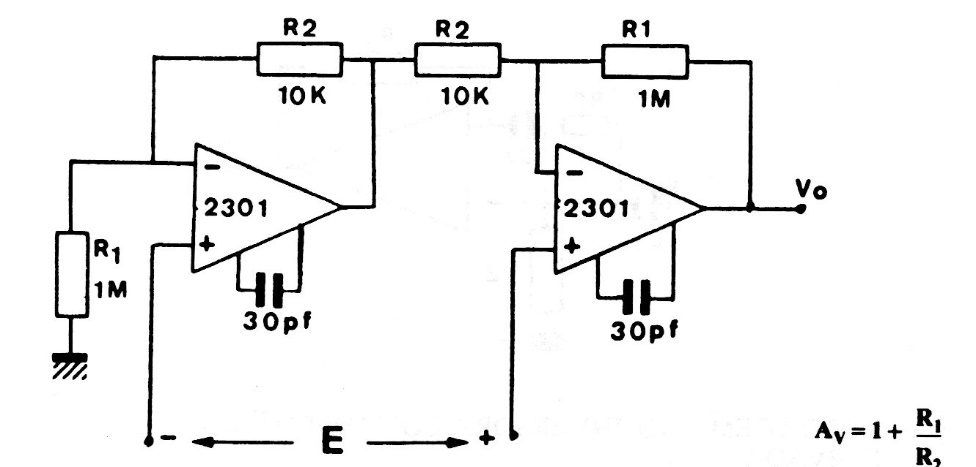

This amplifier configuration for instrumentation with two operators was found in a circuit manual from the 1980s. The circuit must have a symmetrical power source according to the operational ones used, as it is used for other types, and the gain is given by the relationship of values between the resistors.
