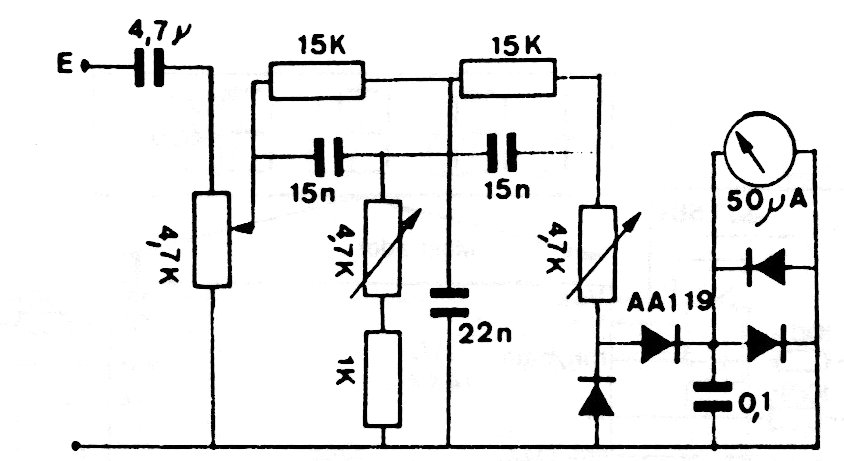

This interesting passive circuit from an 80's publication measures the distortion of an audio signal. The indicator instrument may be the lowest current range of a standard multimeter. Distortion is measured by comparing voltages.
| Clique na imagem para ampliar |
