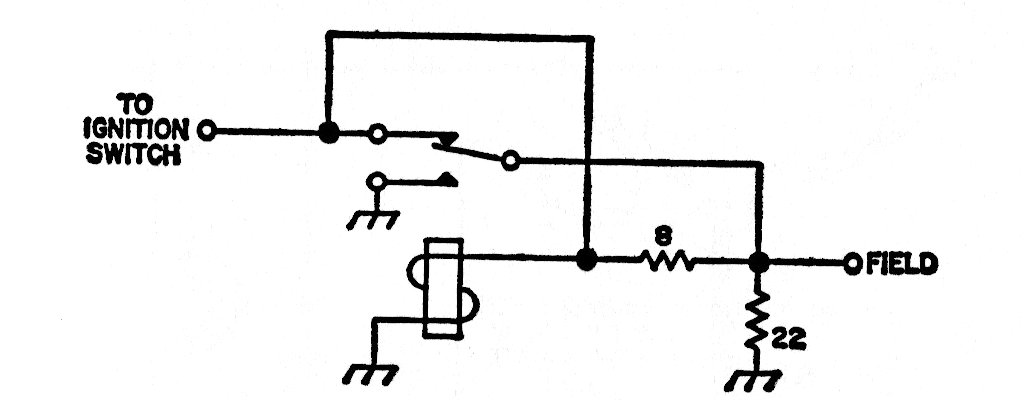

This is the circuit of an automotive voltage regulator from the 1970s. The circuit is entirely electromechanical based on the closing of a relay contacts according to the voltage.
| Clique na imagem para ampliar |
Antique Automotive Voltage Regulator (CB20068E)
- Details
- Written by: Newton C. Braga
