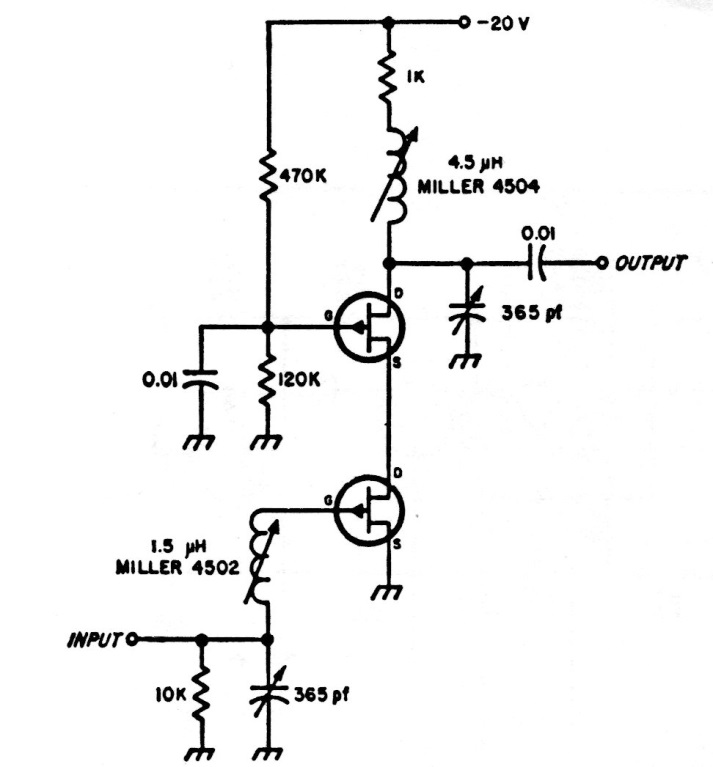

This intermediate frequency amplifier step using 2 junction FETs has a gain of 20 dB. The pass band is 4 MHz. FETs are for general use, with several types that serve in this circuit as BF245.
| Clique na imagem para ampliar |
FET 20 MHz IF (CB20226E)
- Details
- Written by: Newton C. Braga
