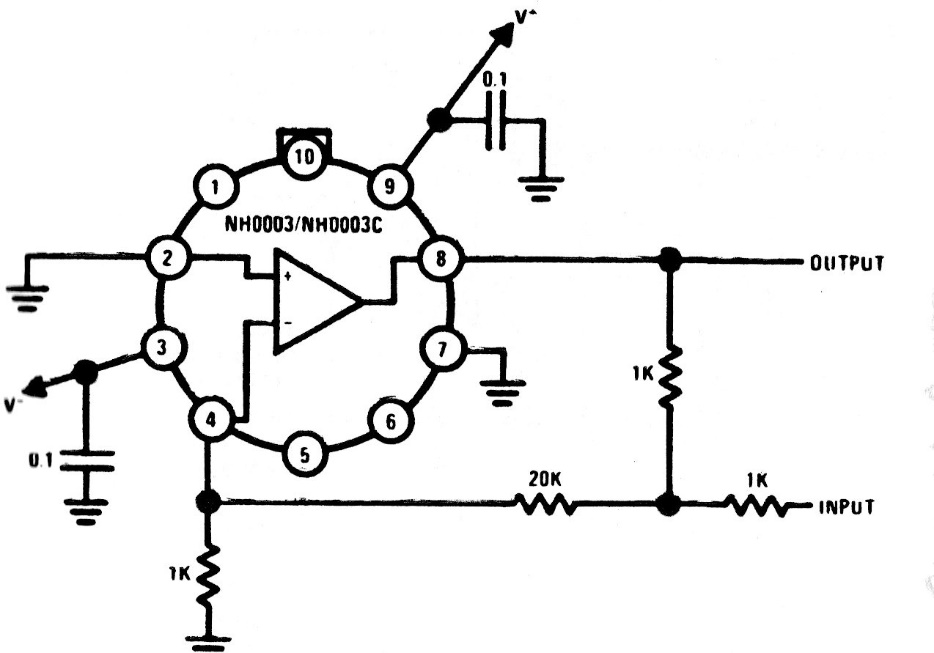

This rapid response amplifier uses an integrated one that is not common today but can be implemented with modern equivalents. The circuit is from an 80's manufacturer documentation.
| Clique na imagem para ampliar |
High Rise Rate Amplifier (CB20163E)
- Details
- Written by: Newton C. Braga
