Instrumentation Amplifier (CB20984E)

Details
Written by: Newton C. Braga

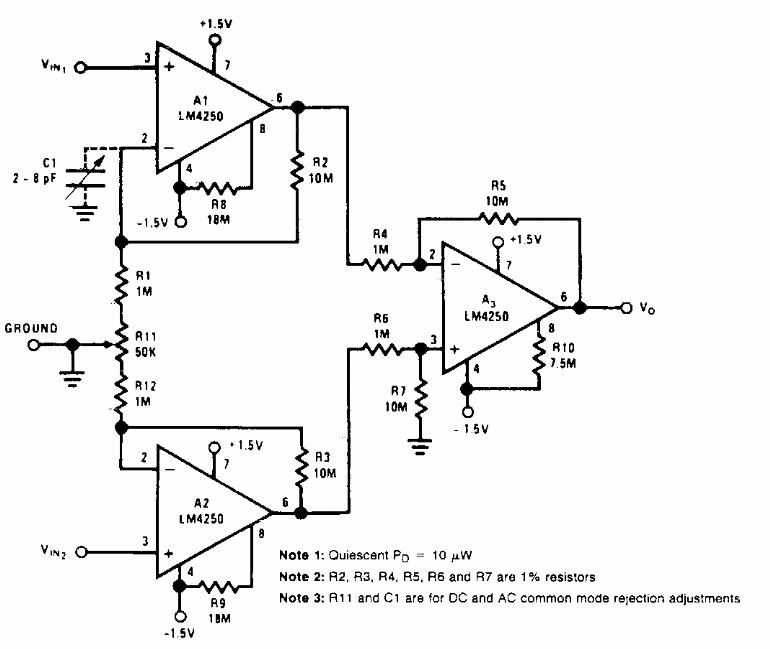

Found in National Semiconductor publication from the 1980s. This gain-100 circuit can be implemented with equivalent modern components, including lower voltage supply.




| Clique na imagem para ampliar |
