Instrumentation Amplifier (CB20990E)

Details
Written by: Newton C. Braga

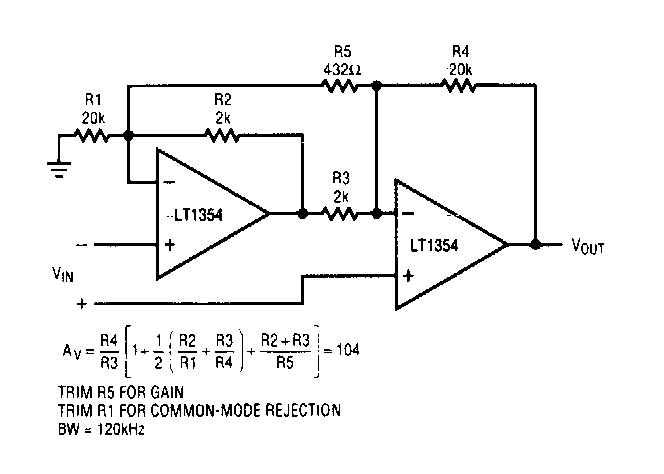

Found in Linear Technology documentation, this amplifier requires a symmetrical power source and its gain is given by the components according to the formula in the diagram.




| Clique na imagem para ampliar |
