PUT shift register (CB20719E)

Details
Written by: Newton C. Braga

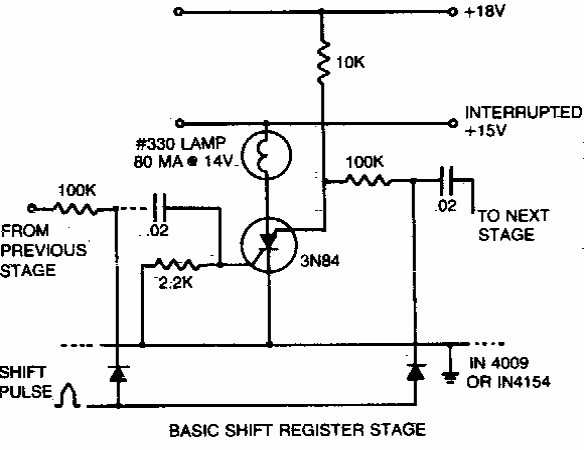

This shift register was found in old documentation. PUT is not a common component today. The circuit is low speed.
