VHF Modulator (CB20775E)

Details
Written by: Newton C. Braga

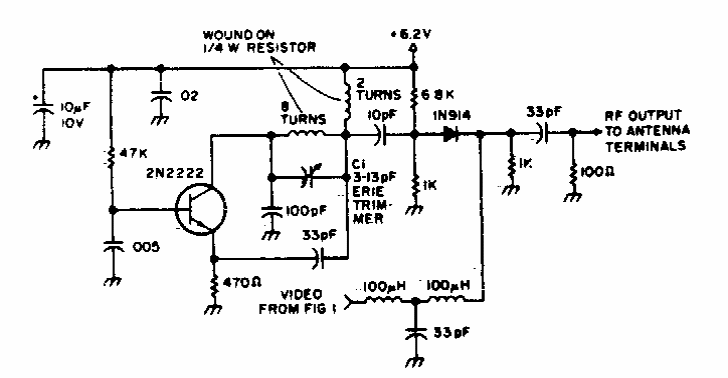

This circuit can generate signals in the VHF range and can be used as the basis for small transmitters. The frequency depends on the coil, which can have 2 to 8 turns for the range of 50 to 200 MHz.
