Receiver for audio link (CB20983E)

Details
Written by: Newton C. Braga

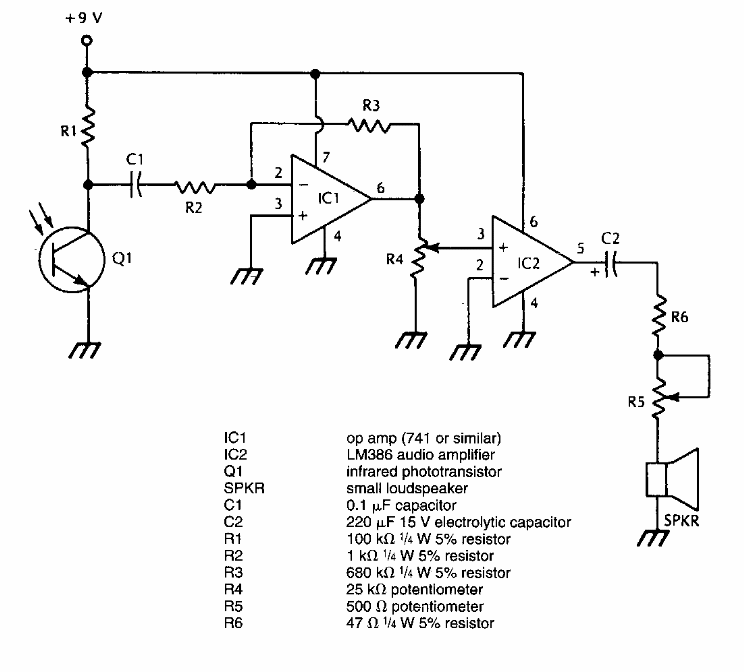

Found in old American documentation, this receiver receives modulated infrared signals and converts them into sound. The audio amplifier circuit can be replaced by a modern equivalent.
