Sliding tone doorbell (CB20647E)

Details
Written by: Newton C. Braga

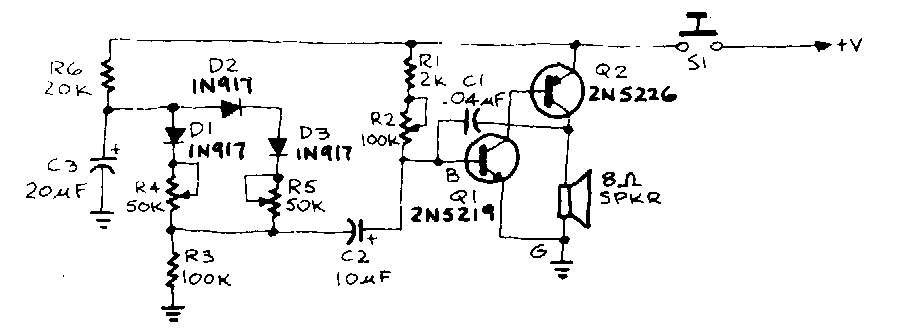

The tone generated by this bell changes when we press and release the switch. The circuit is from a 1985 Radio Electronics. Some changes can be made to improve its performance.
