Mini Radio AM (CB20322E)

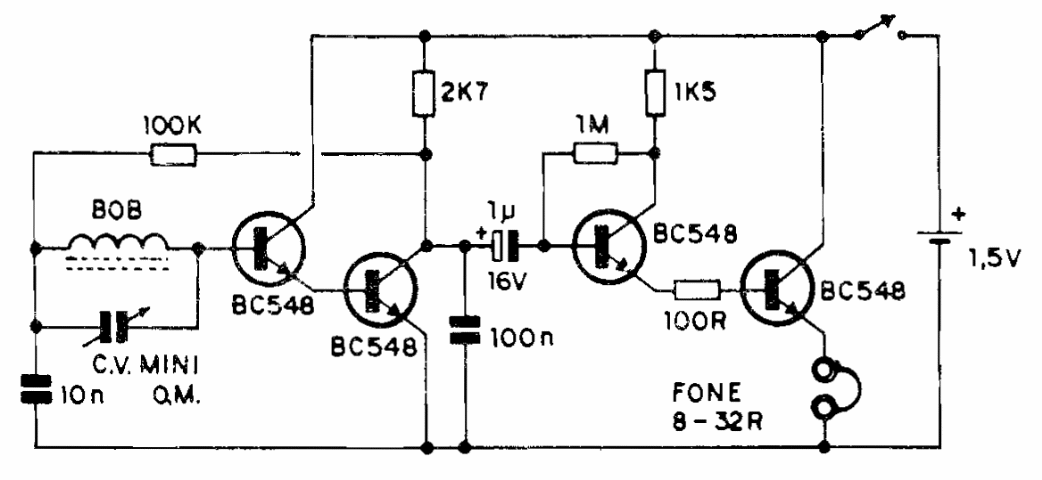

In this receiver the is formed by 80 turns of wire 28 or close in a ferrite rod. The handset is low impedance and powered by a standard battery.
