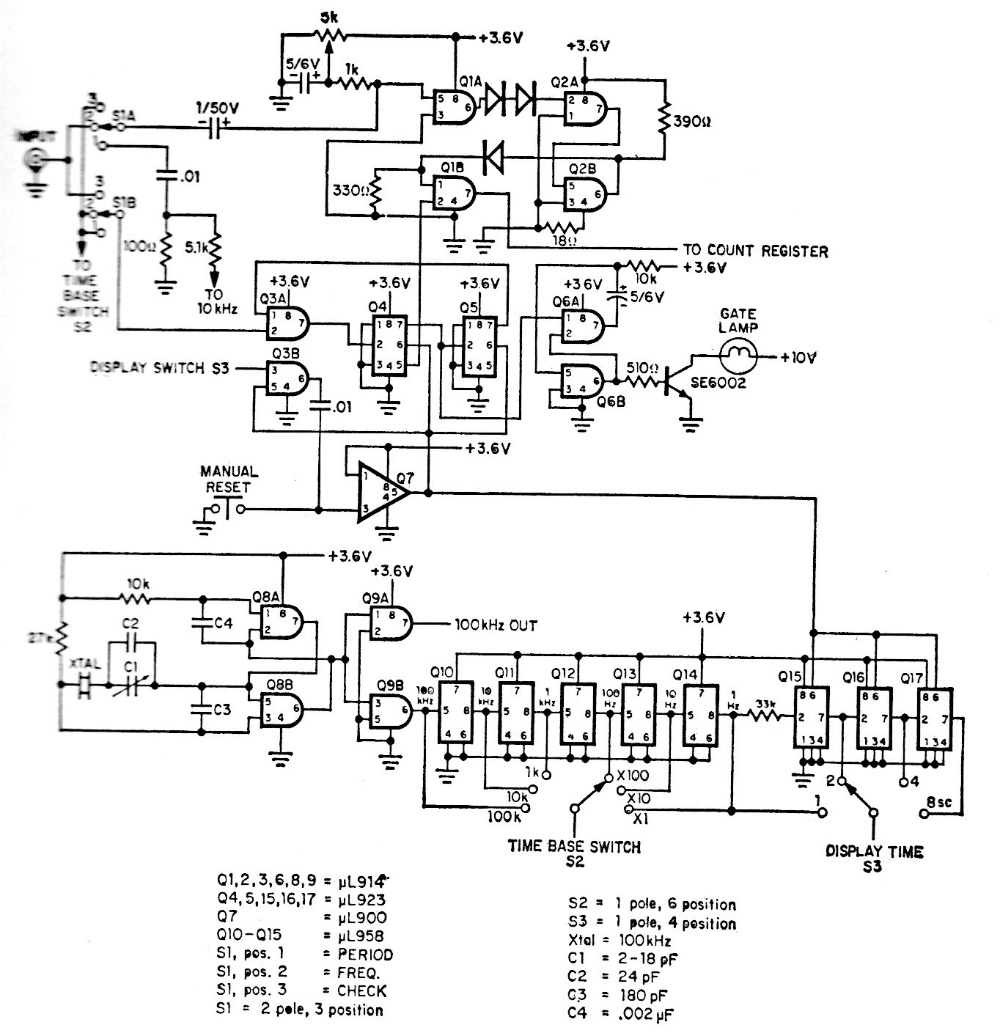

10 MHz counter (CB20128E)

Details
Written by: Newton C. Braga



This meter has a 0.001% tolerance and was found in an old American publication. The circuit has a selectable output.




| Clique na imagem para ampliar |
