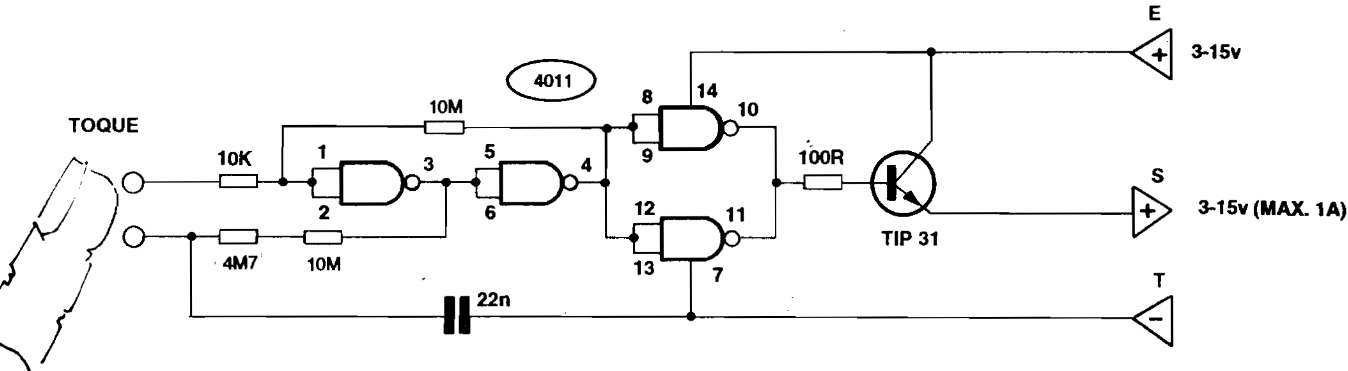

This circuit allows control of loads of up to 1 A with voltages from 3 to 15 V. The transistor must be equipped with a heat sink and the power supply must not be of the type without a transformer.
| Clique na imagem para ampliar |
Touch Control (CB20317E)
- Details
- Written by: Newton C. Braga
