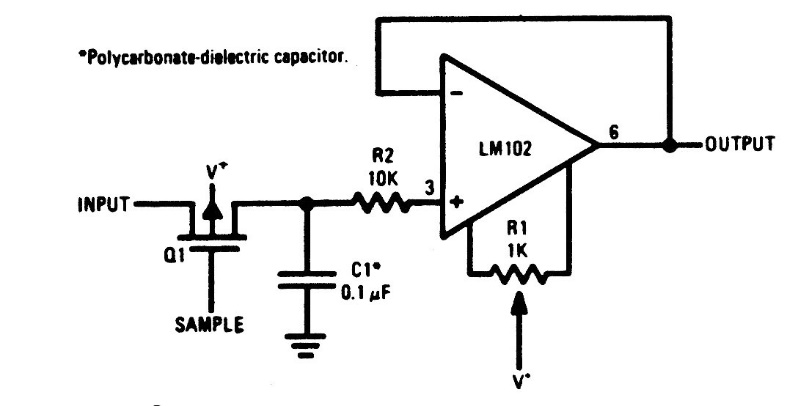

This circuit is from a factory manual from the 80s. The circuit can be implemented with more modern operationals. Capacitor C1 is a low leakage type. The power supply must be symmetrical.
| Clique na imagem para ampliar |
Sampling and Retention (CB20151E)
- Details
- Written by: Newton C. Braga
