12 V x 700 mA supply (CB20181E)

Details
Written by: Newton C. Braga

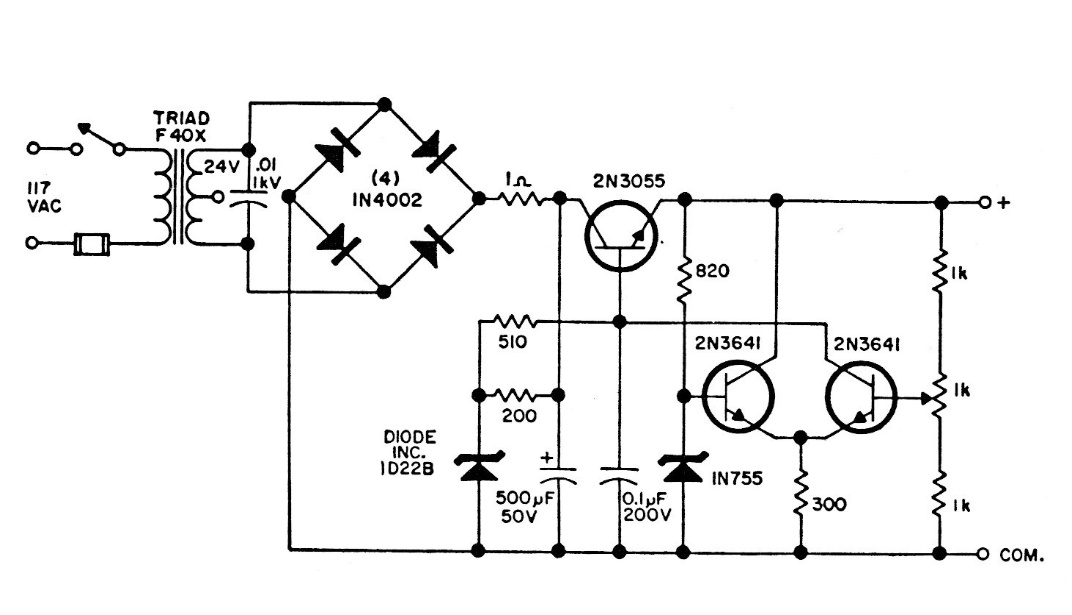

This stabilized source can supply currents up to 700 mA and the output voltage is close to 15 V. a little less with the load. The power transistor must have a good heat radiator.
