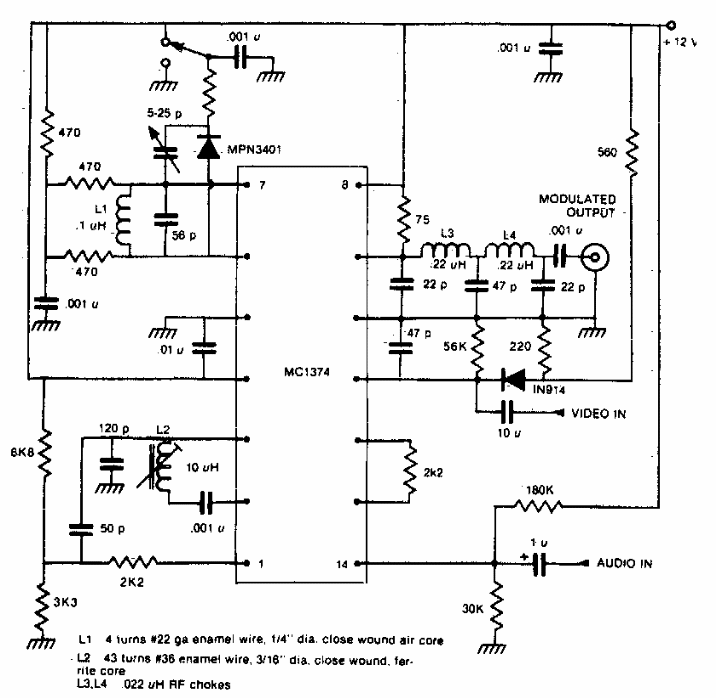

TV Modulator (CB20773E)

This circuit for the VHF band of analog TV was found in Motorola documentation from the 70s. The integrated circuit used is uncommon today.

| Clique na imagem para ampliar |
