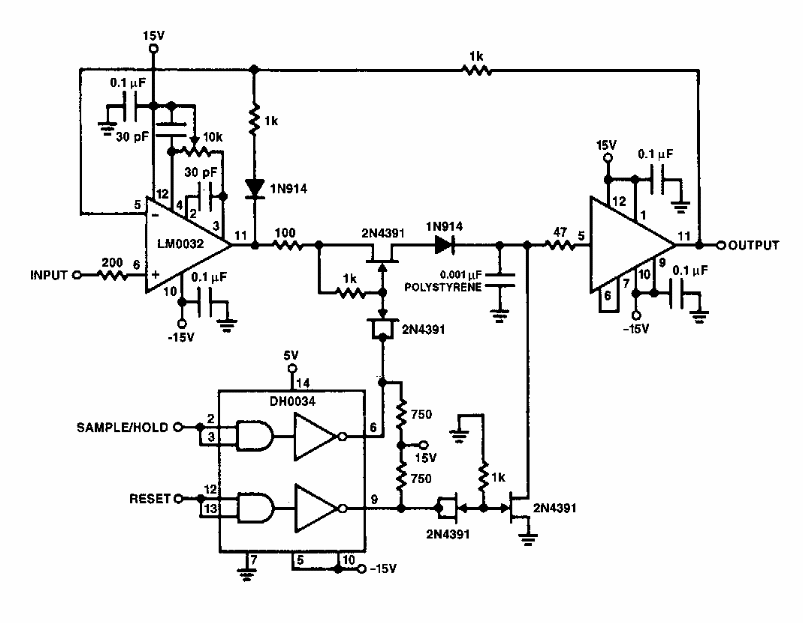

This circuit was found in a National Semiconductor manual from the 1980s. The integrated circuits used are equivalent. Note the need for a symmetrical power supply.
| Clique na imagem para ampliar |
Fast peak detector (CB20893E)
- Details
- Written by: Newton C. Braga
