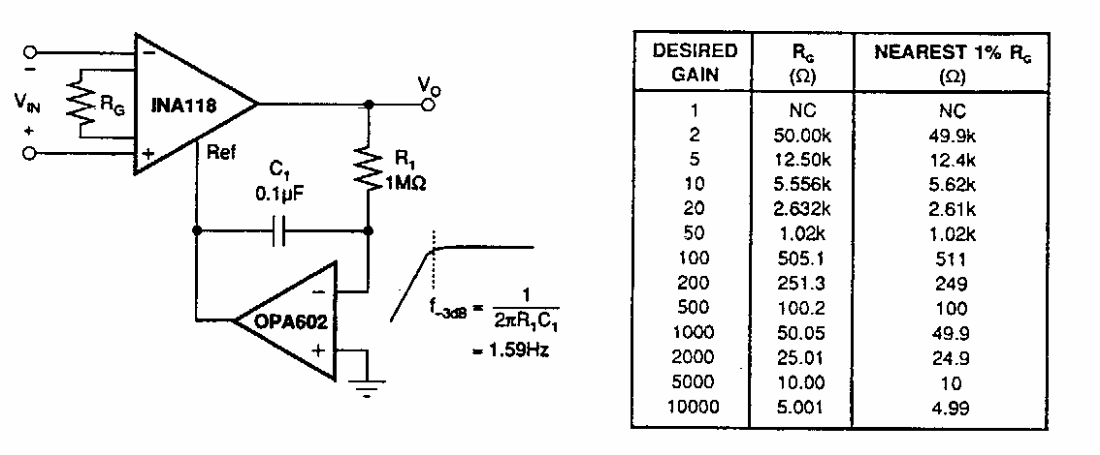

This amplifier was found in Burr-Brown documentation from the 90's. The gain can be programmed by resistor Rg as per the table given in the diagram. The power supply must be symmetrical.
