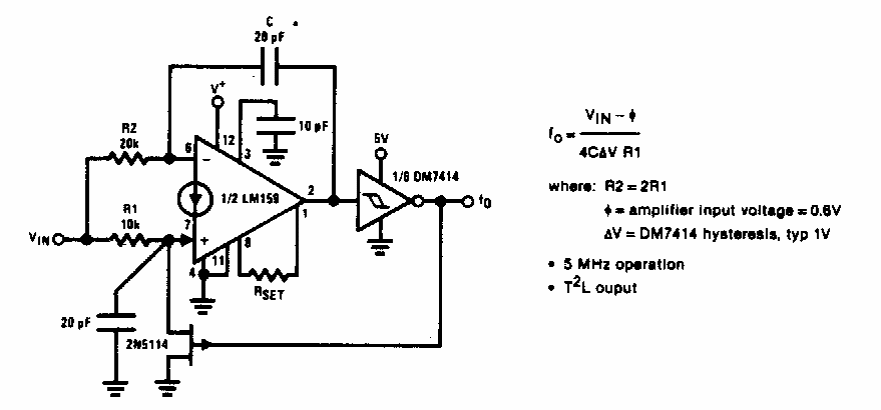

This circuit makes use of a transconductance operational amplifier from the 90s. Formula for the calculation of the components is given next to the diagram.
| Clique na imagem para ampliar |
Voltage-Controlled Oscillator 2 (CB20832E)
- Details
- Written by: Newton C. Braga
