Isolated DC to DC (CB20666E)

Details
Written by: Newton C. Braga

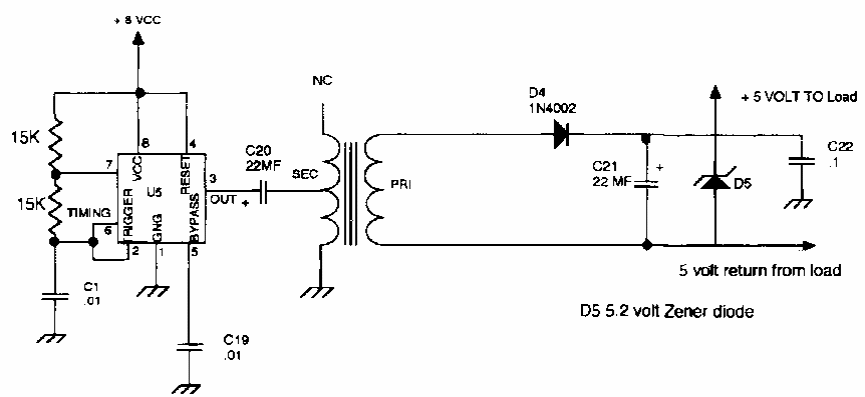

Found in a magazine 73 for radio amateurs of the 90s, this circuit converts a continuous voltage and another continuous voltage, but with insulation between the circuits.
