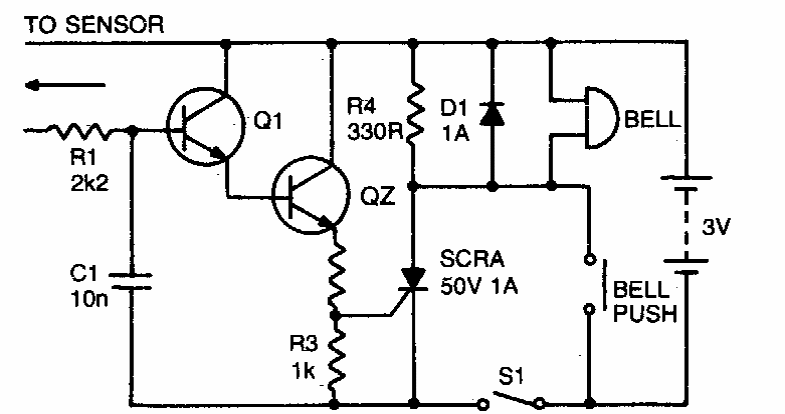

Rain alarm (CB20779E)

Details
Written by: Newton C. Braga



We found this circuit in an old documentation, but it is still current. General purpose transistors can be used, and the SCR can be the TIC106. The bell is a transducer with an oscillator (buzzer).
