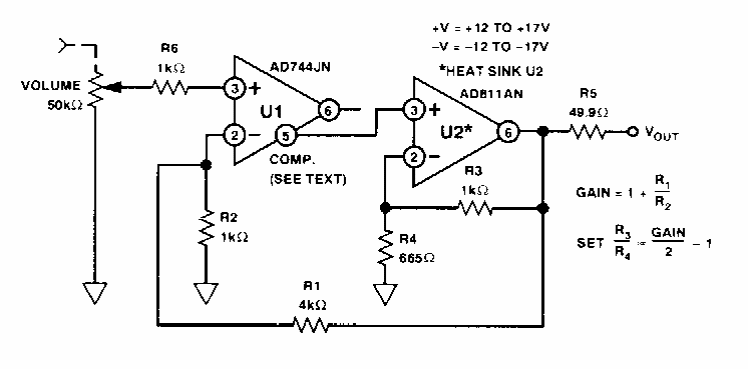

100 mA Line Driver (CB20921E)

Details
Written by: Newton C. Braga



This low distortion circuit was found in 80's Analog Devices documentation. The used integrated circuits are not very common today.
