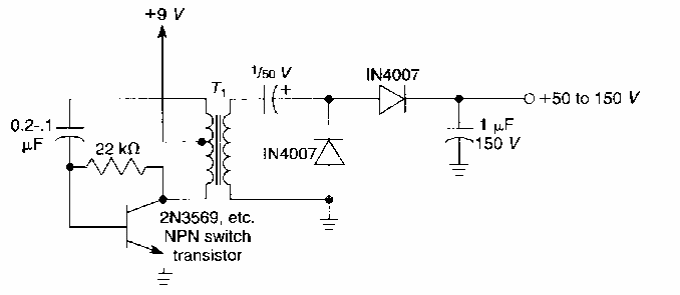

DC to DC converter (CB20667E)

Details
Written by: Newton C. Braga



This circuit was found in American documentation from the 90's. The transformer determines the output voltage. The transistor must be equipped with a heat sink.
