Passive tone control (CB20803E)

Details
Written by: Newton C. Braga

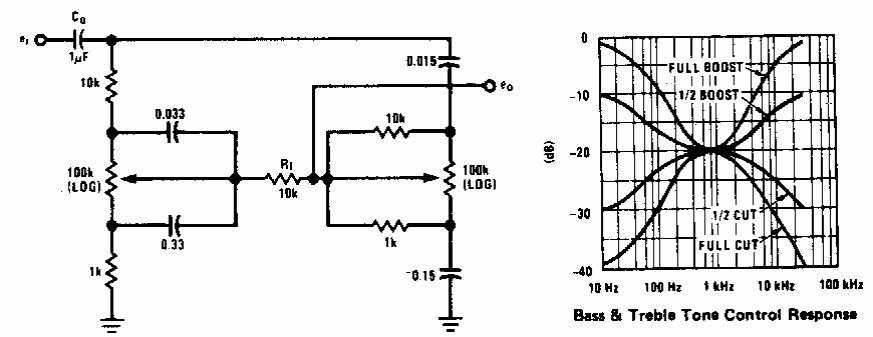

This tone control circuit can be added to any active amplifier configuration. The performance curve is given next to the diagram.
