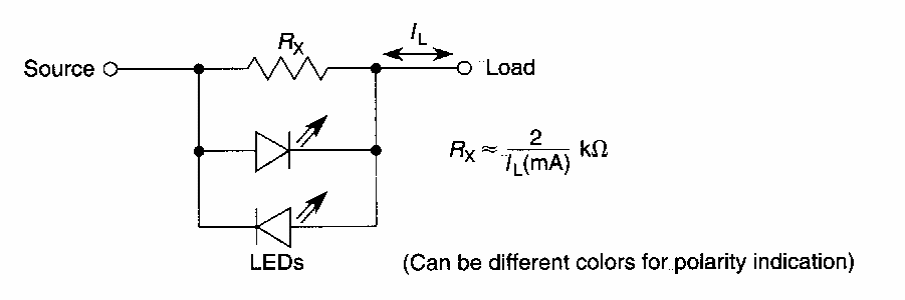

This bidirectional circuit was found in an American documentation from the 80's. The LEDs are common red, and the resistor is calculated according to the formulas next to the diagram.
| Clique na imagem para ampliar |
Current indicator (CB20965E)
- Details
- Written by: Newton C. Braga
