Triac Dimmer 2 (CB20704E)

Details
Written by: Newton C. Braga

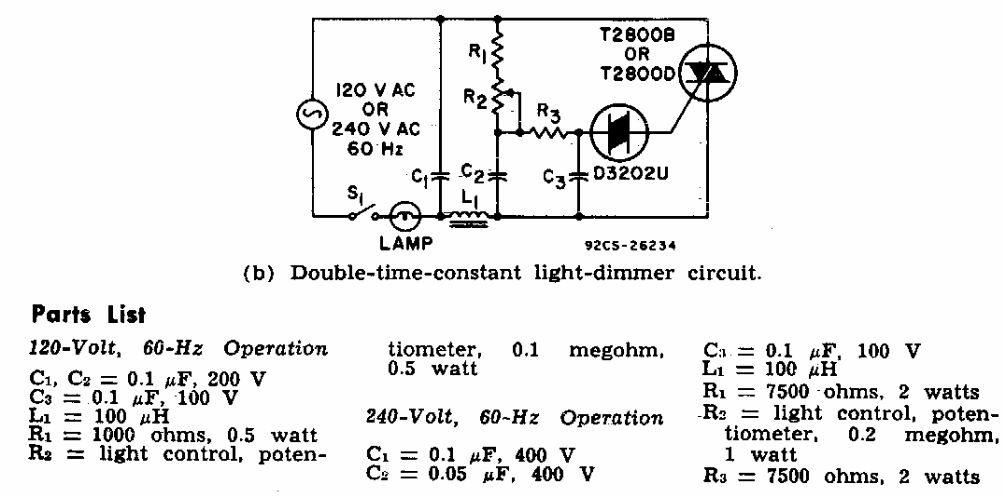

This double time constant circuit for resistive loads was found in documentation from the 1980s. The triac must be equipped with a heat sink.
