50mA driver (CB20924E)

Details
Written by: Newton C. Braga

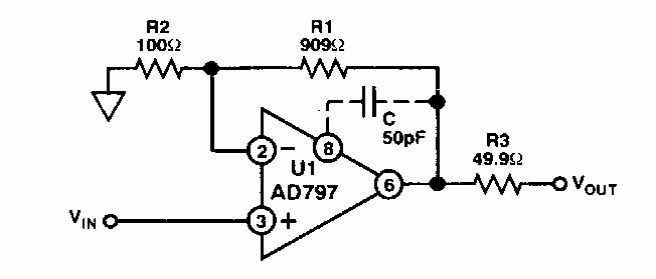

This ultra-low distortion driver was found in 80's Analog Devices documentation. The circuit has a THD of -115 dB under load of 600 ohms at 20 kHz.
