Audible liquid level alarm (CB20726E)

Details
Written by: Newton C. Braga

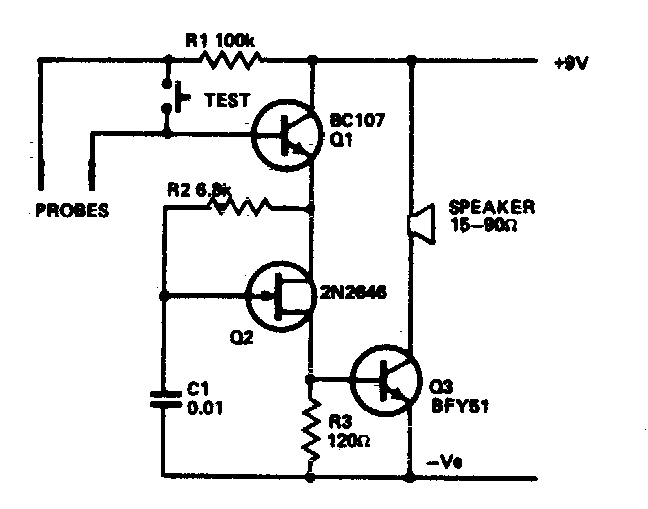

This circuit was found in a publication in the 1980s. Modern equivalent components can be used. The source must be isolated. The circuit includes an oscillator.




| Clique na imagem para ampliar |
