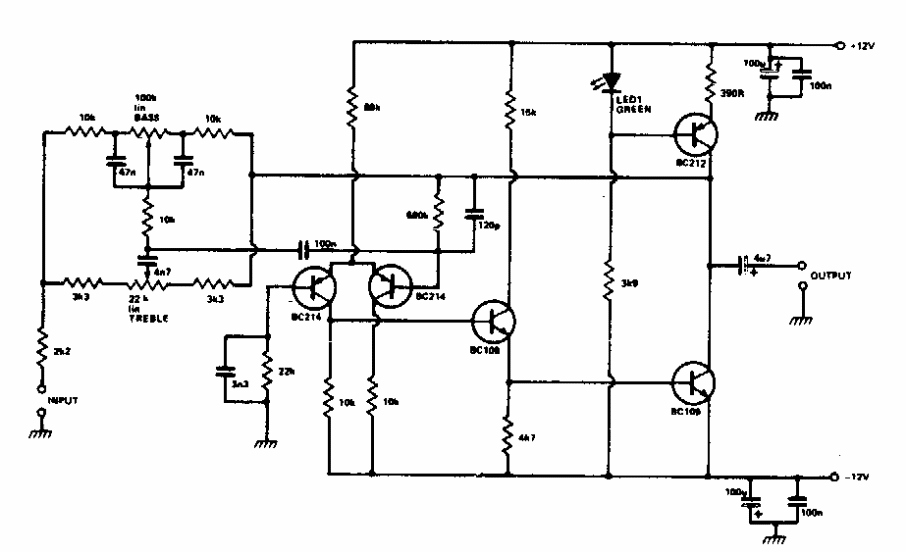

High quality tone control (CB20805E)

Details
Written by: Newton C. Braga



This circuit was found in an American documentation from the 1980s. The sensitivity ranges from 100 mV to 1 V. The supply must be done with an excellent filtering source.
