Satellite antenna polarization control (CB20671E)

Details
Written by: Newton C. Braga

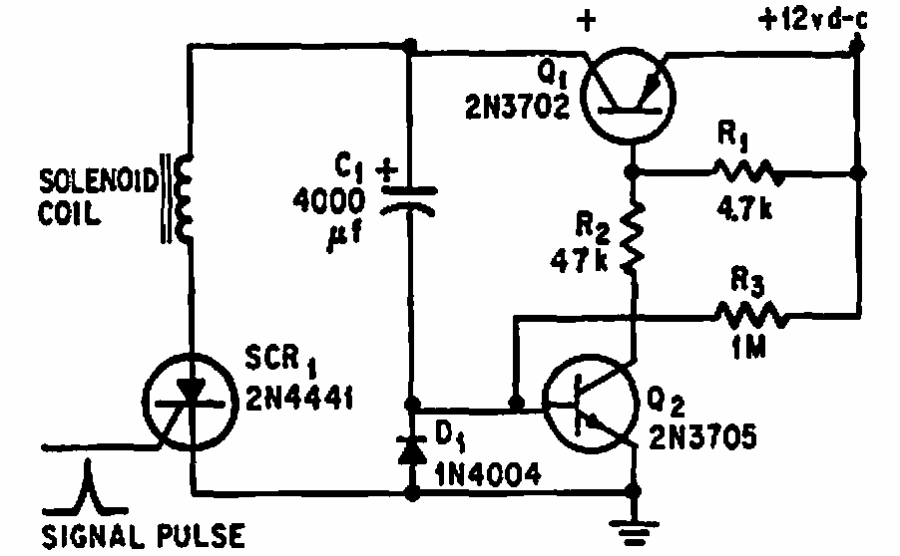

This 1968 circuit is intended to switch the polarization of a satellite TV antenna of the time. The circuit is powered by 12 V and the transistors are from that time.
