Crystal radio (CB20903E)

Details
Written by: Newton C. Braga

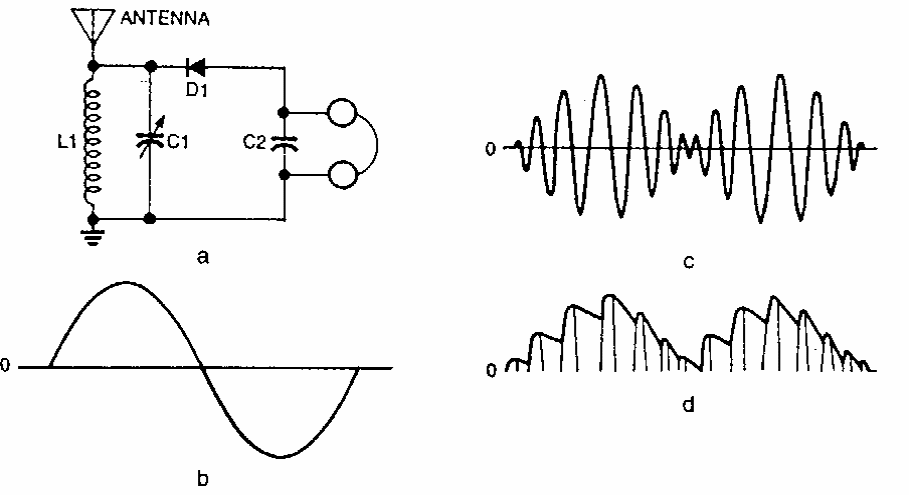

This crystal or galena radio uses a germanium diode. C1 is an old radio variable and L1 has 100 turns of 26 or 28 wire in a 1 inch PVC pipe. The antenna must be a long wire.




| Clique na imagem para ampliar |
