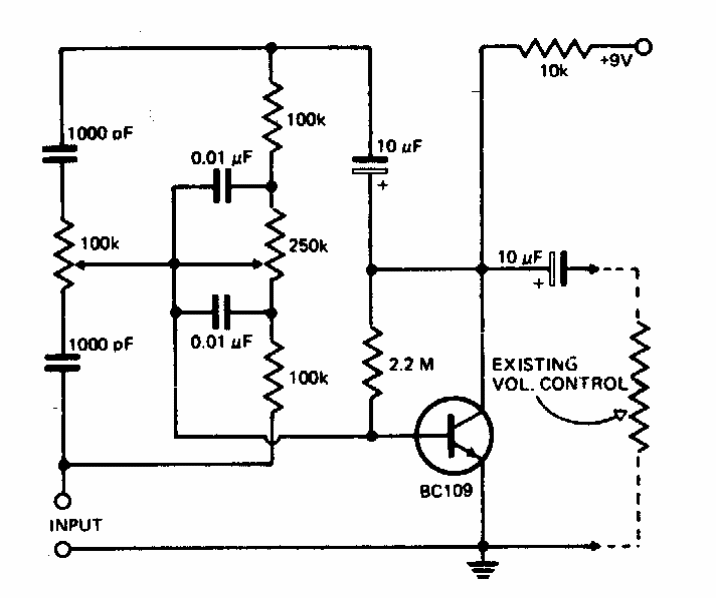

Active three-tone filter (CB20808E)

This circuit was found in an American documentation and can be added to common amplifiers of any type. The transistor can be any general purpose.
