Low current AC control (CB20707E)

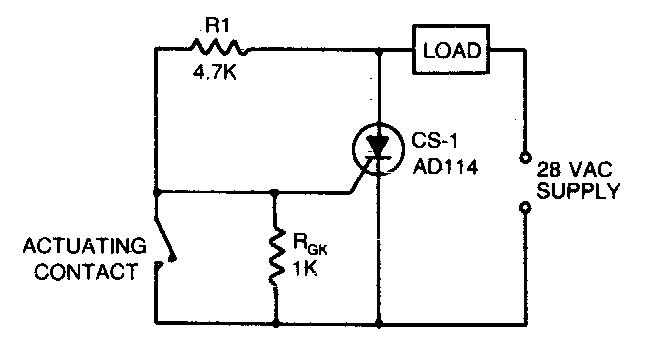

This SCR circuit is intended to control an AC load with a low current switch. This switch can be a reed sensor. The load depends on the SCR.
