Vehicle alarm (CB20627E)

Details
Written by: Newton C. Braga

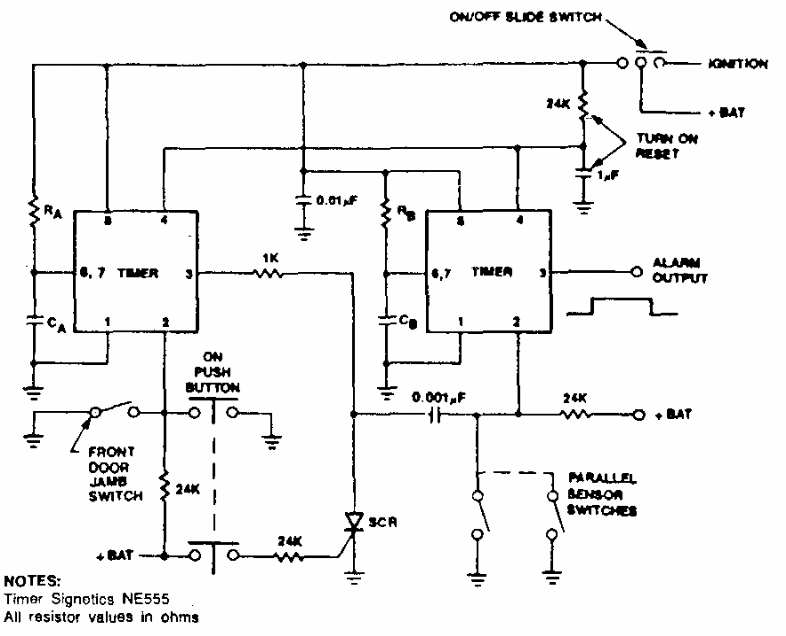

This car alarm was obtained in a Signetics documentation from the 1980s. The circuit uses the 555 and has a pulsed output to activate a relay that controls the horn. The sensors are parallel connected.




| Clique na imagem para ampliar |
