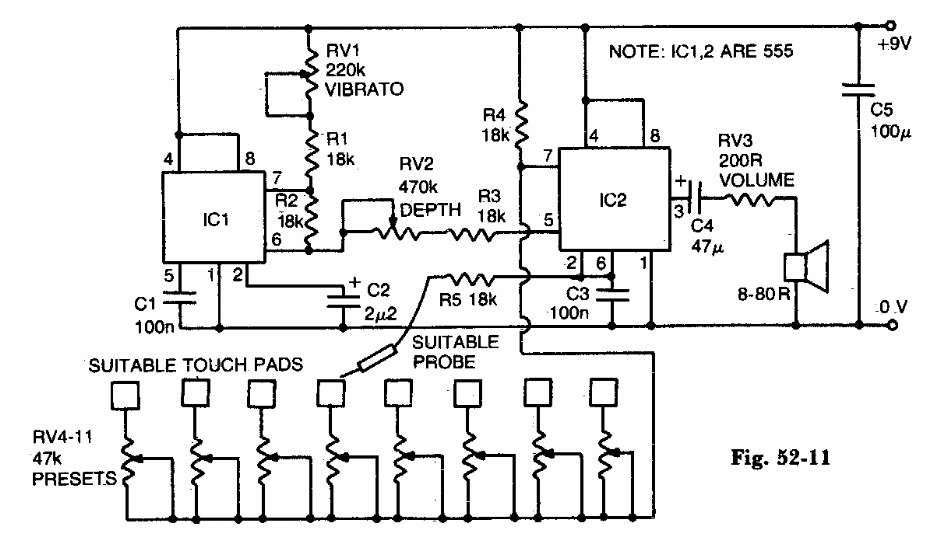

This organ, played by a probe was found in no old documentation, but it can be easily implemented these days. The integrated circuits are 555. The trimpot allows individual tuning of the keys.
| Clique na imagem para ampliar |
Toy Organ (CB20753E)
- Details
- Written by: Newton C. Braga
