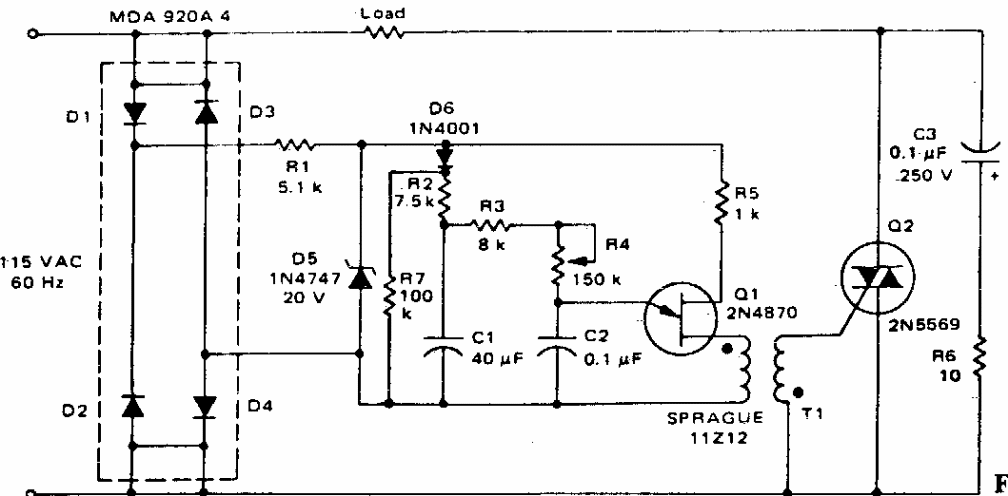

Soft start dimmer (CB20713E)

Details
Written by: Newton C. Braga



This circuit was obtained in documentation from the 1980s. The triac and the unijunction support modern equivalents. The trigger transformer is 1: 1 turn ratio.
