Voltage to frequency converter (CB20608E)

Details
Written by: Newton C. Braga

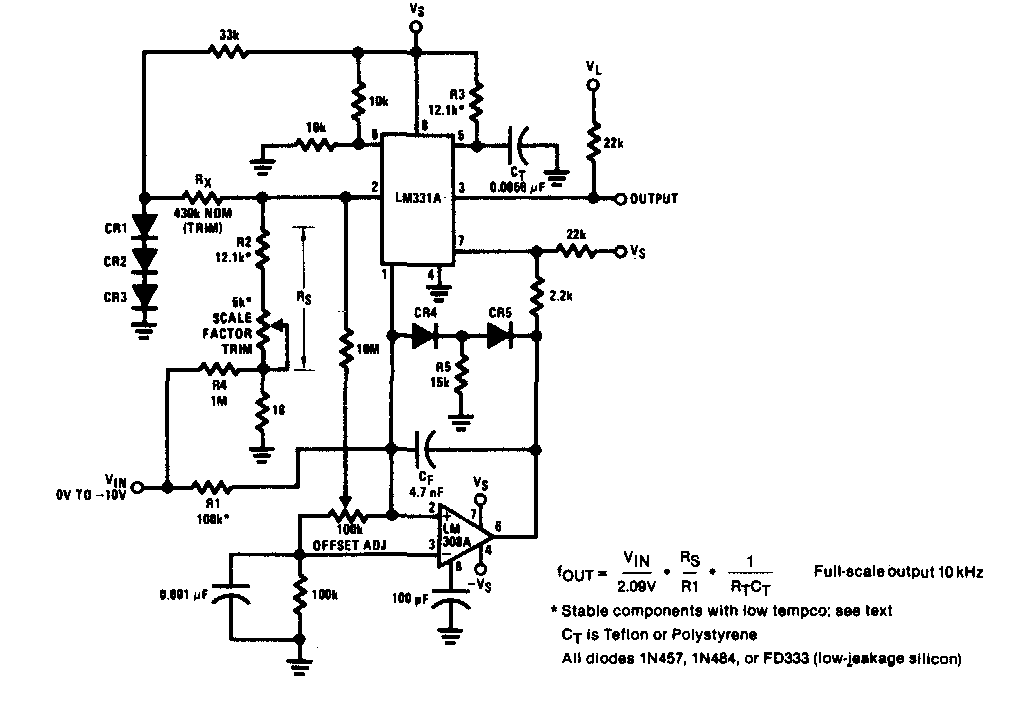

This circuit is from a National Semiconductor manual from the 1980s. The integrated circuit is rare today and next to the diagram we have the formula for calculating the components.




| Clique na imagem para ampliar |
