Adjustable light detector (CB20693E)

Details
Written by: Newton C. Braga

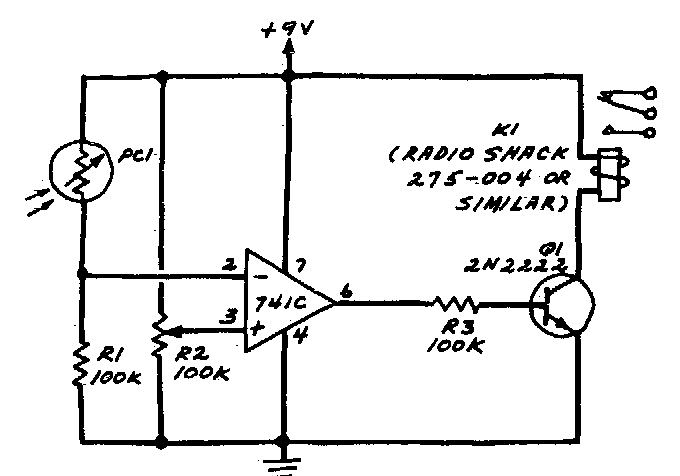

This conventional relay light detector circuit uses a 741 as a voltage comparator. The sensitivity adjustment is made in R1. The supply voltage depends on the relay used.
