Optical trigger (CB20692E)

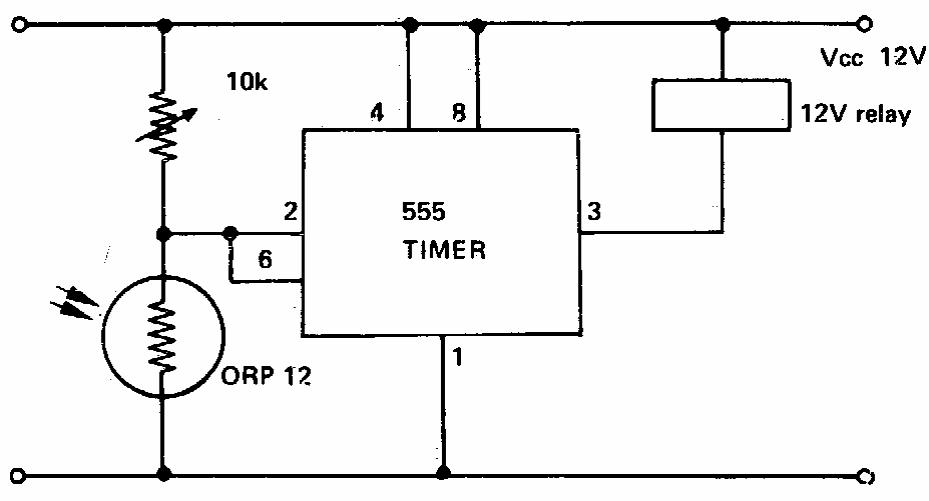

This Schmitt optical trigger with LDR was found in old documentation. The relay must be sensitive, or an additional step must be used to trigger it.

| Clique na imagem para ampliar |

High Fidelity Amplifier (CB954E)
I found tis circuit in na old documentation from 1958. The circuit uses germanium transistor...
Waveform Converter (CB10133E)
This circuit squares the waveform of a signal applied to its input. The circuit is from an old...
