MW Receiver ZN416E (CB20680E)

Details
Written by: Newton C. Braga

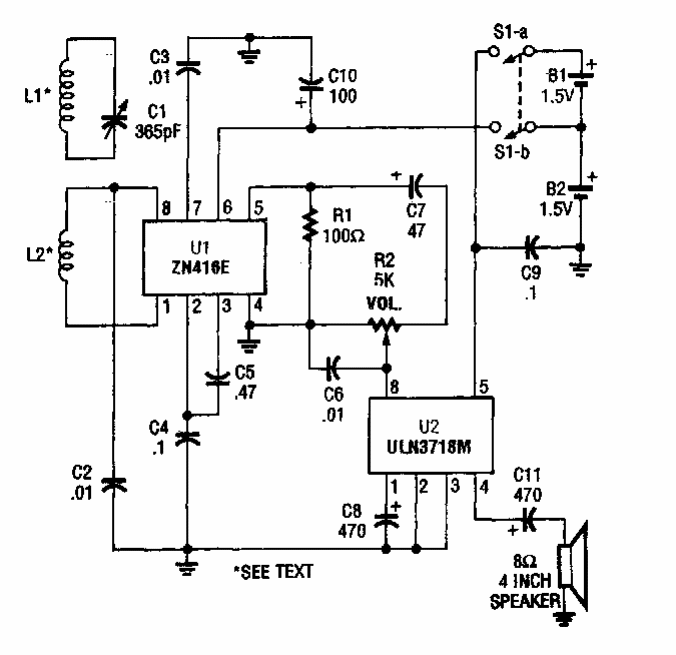

Found in a Popular Electronics from the 90s, this circuit makes use of an unusual integrated today. The coils are for the medium wave range.
