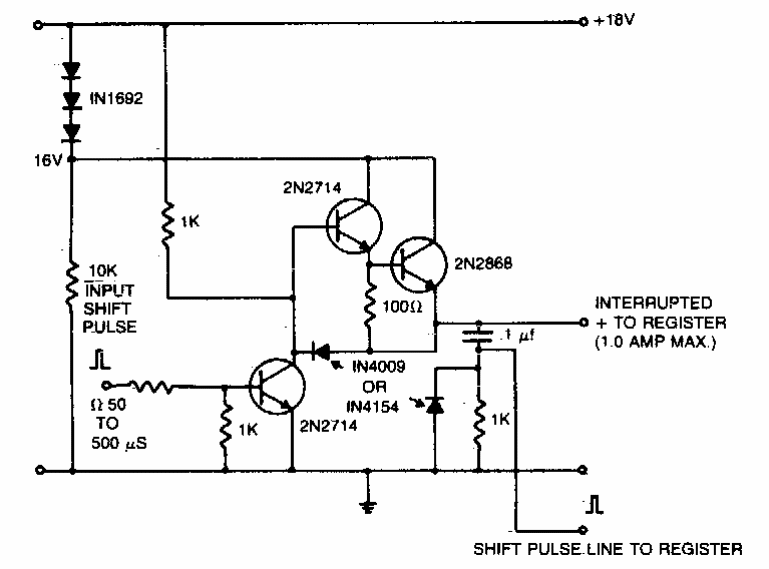

Driver for Shift Register (CB20750E)

Details
Written by: Newton C. Braga



This circuit was found in documentation two years 80. Transistors can be modern equivalents. Or circuit can be modified to operate with lower voltage.
