Precision differential amplifier (CB20907E)

Details
Written by: Newton C. Braga

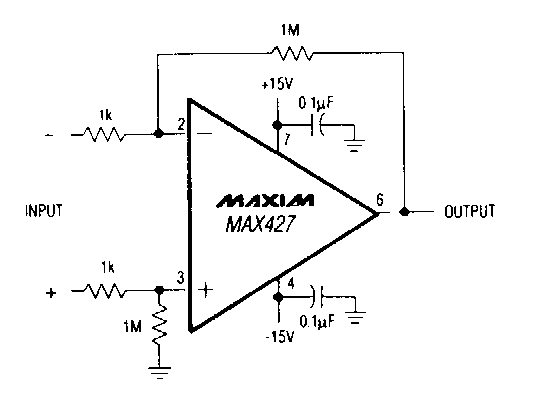

This circuit has a 60 dB gain and a bandwidth of 68 MHz. We find it in Maxim's documentation.
