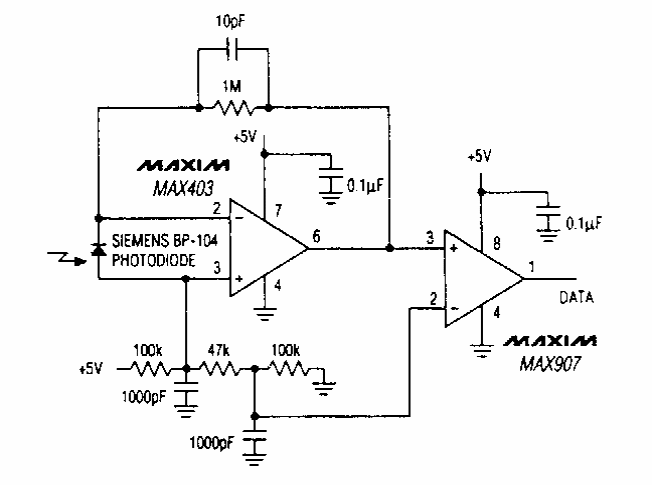

Infrared link receiver (CB20974E)

Details
Written by: Newton C. Braga



This circuit was taken from Maxim documentation from the 1990s. It can be implemented on the basis of modern operational amplifiers. Power supply doesn't have to be symmetrical.
