Protection circuit for speakers (CB20639E)

Details
Written by: Newton C. Braga

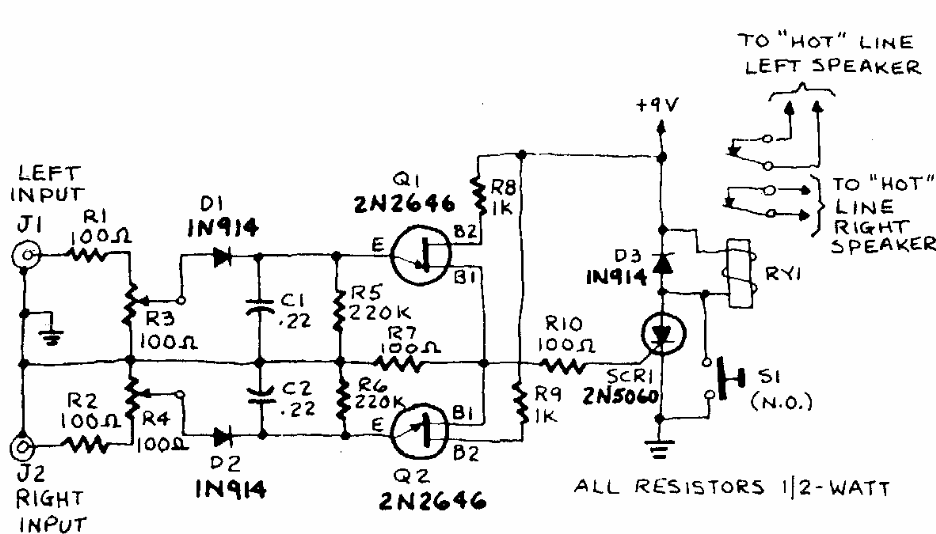

This speaker overload protection circuit was found in Radio Electronics from the 1980s. The circuit uses a 9 V relay but can be powered by 12 V for a relay of this voltage.
