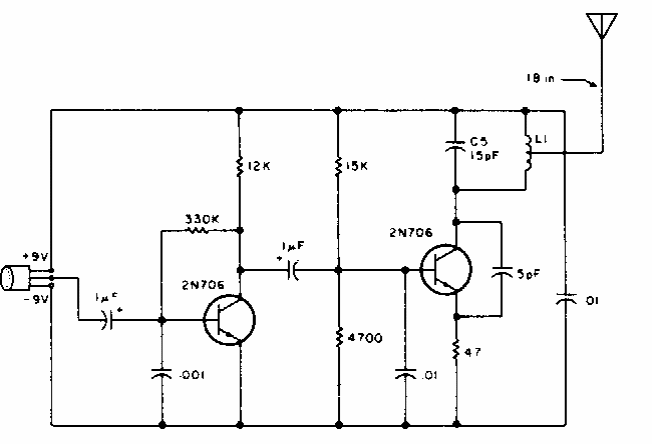

Simple FM transmitter (CB20811E)

Details
Written by: Newton C. Braga



The L1 coil is formed by 4 turns of wire 20 in the form of 0.5 to 0.6 cm without core. The circuit is from an 80's documentation. The range reaches a few tens of meters.
