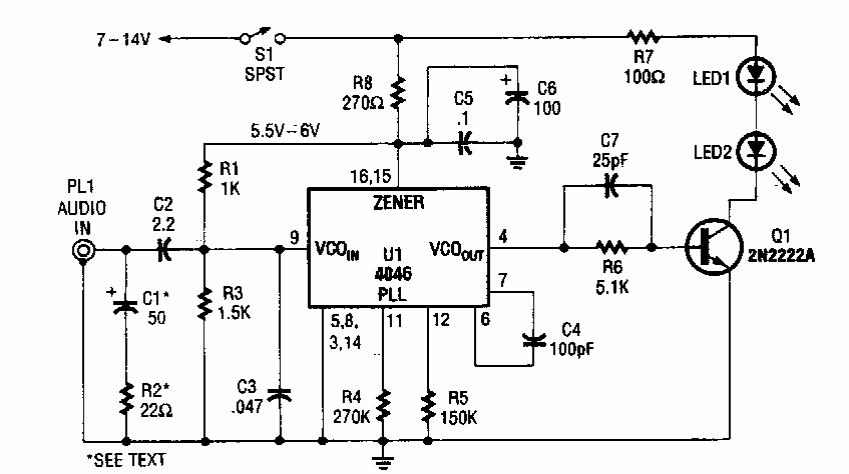

Wireless Headset Transmitter (CB20970E)

Details
Written by: Newton C. Braga



This circuit was found in a Popular Electronics from the 90's. The CMOS integrated circuit used is not very common nowadays. The range depends on the infrared LEDs. R7 can be changed.
